DLPA2x44F-K

Battery Locomotive

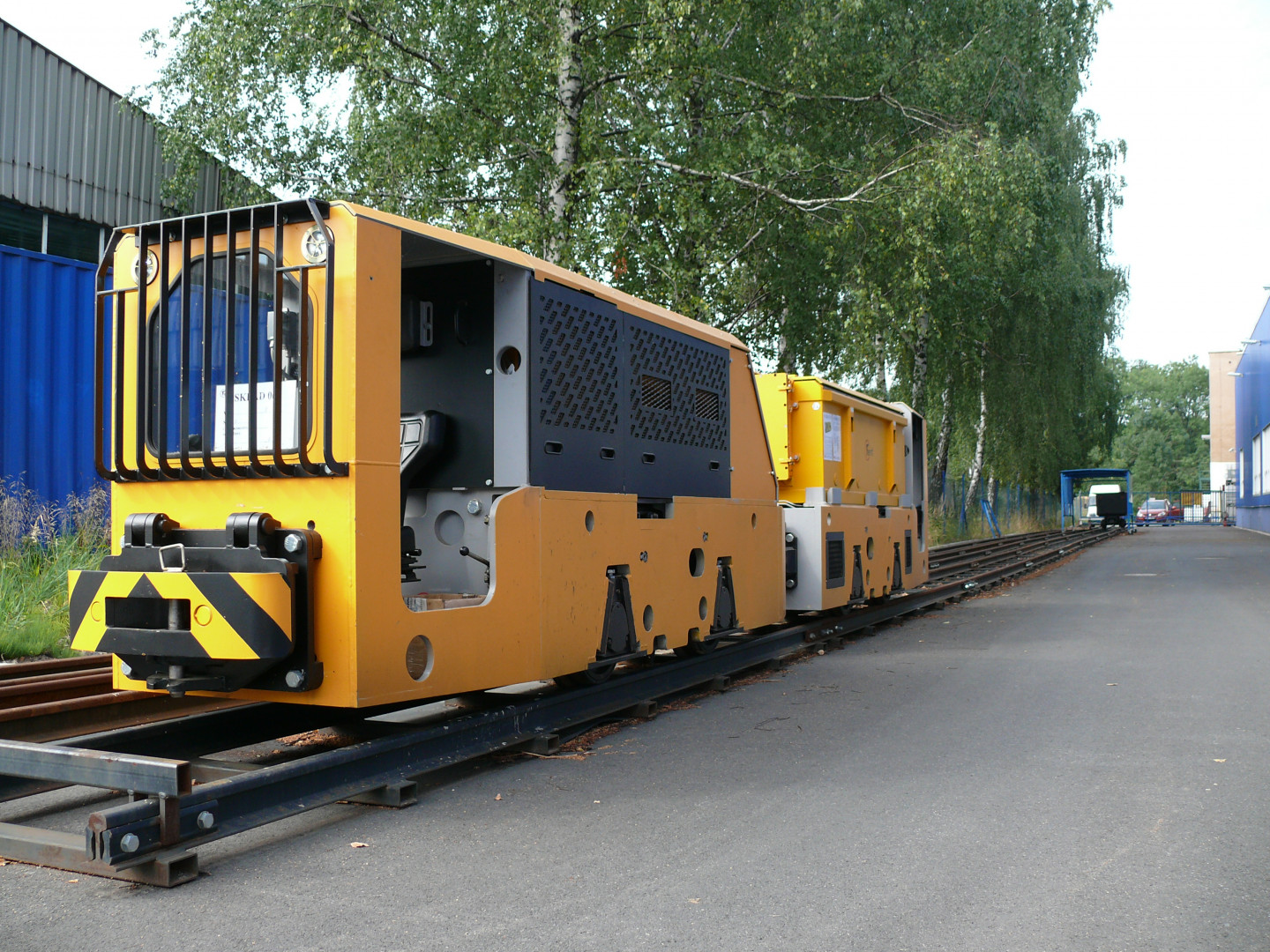

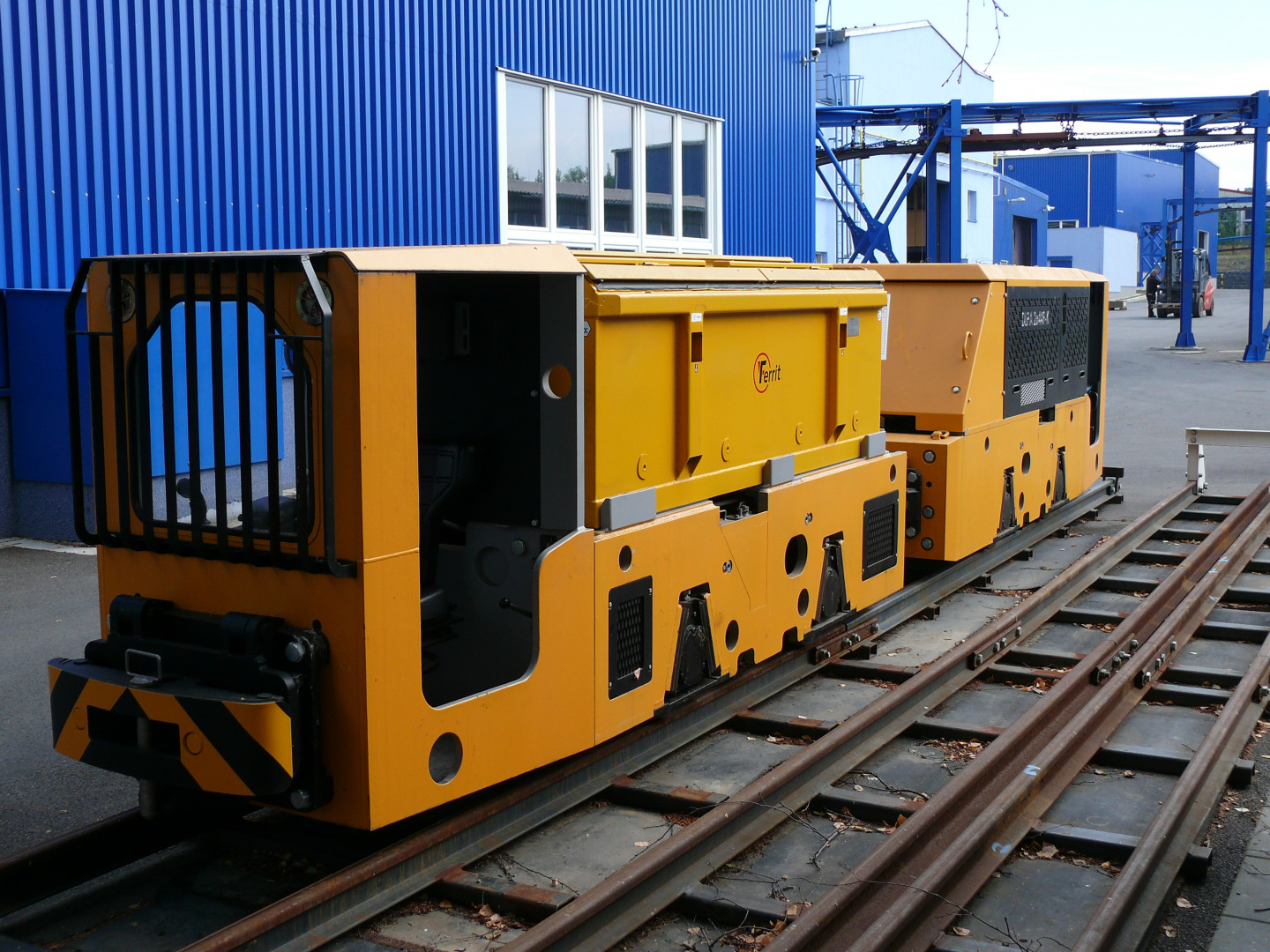

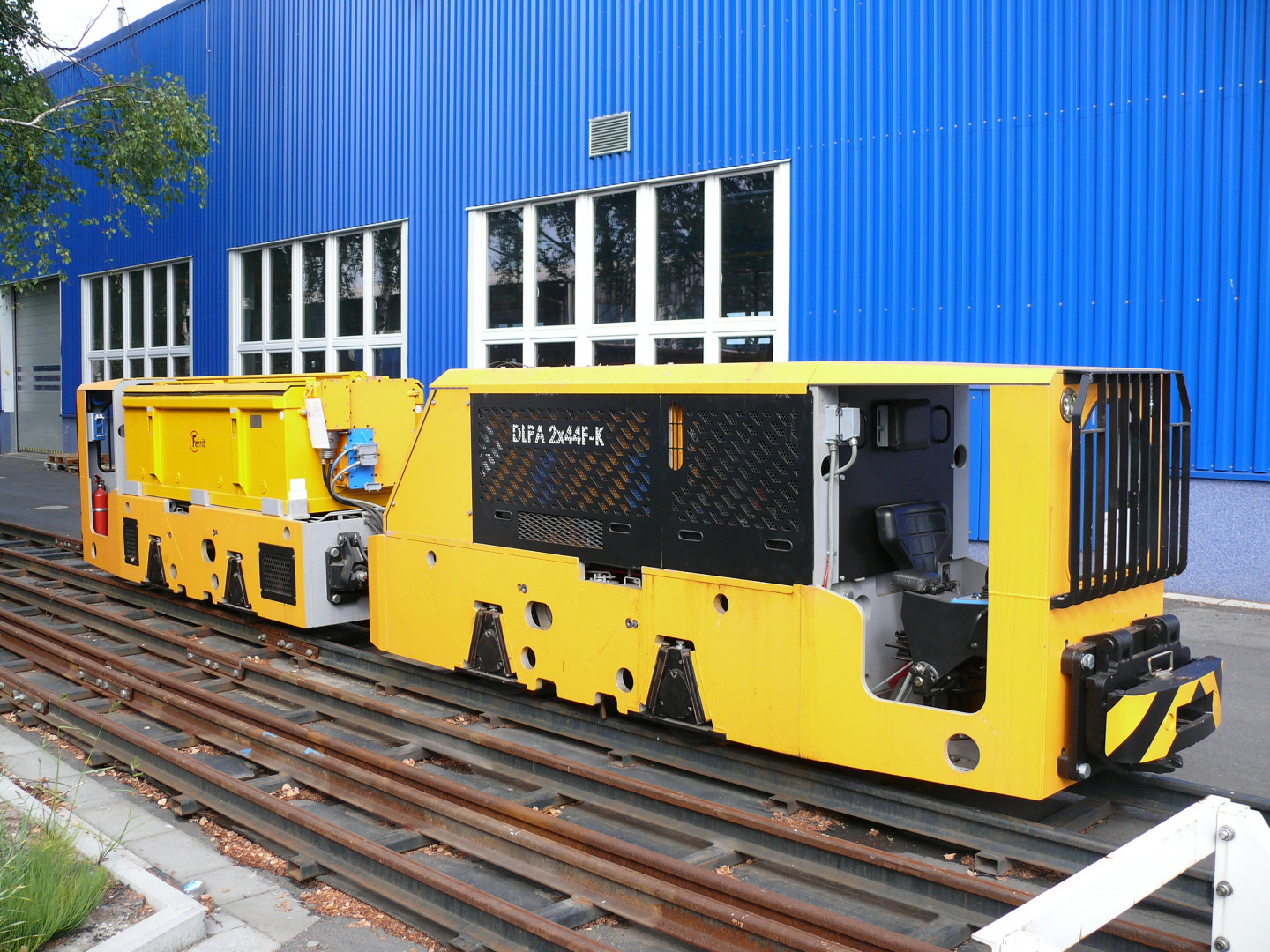

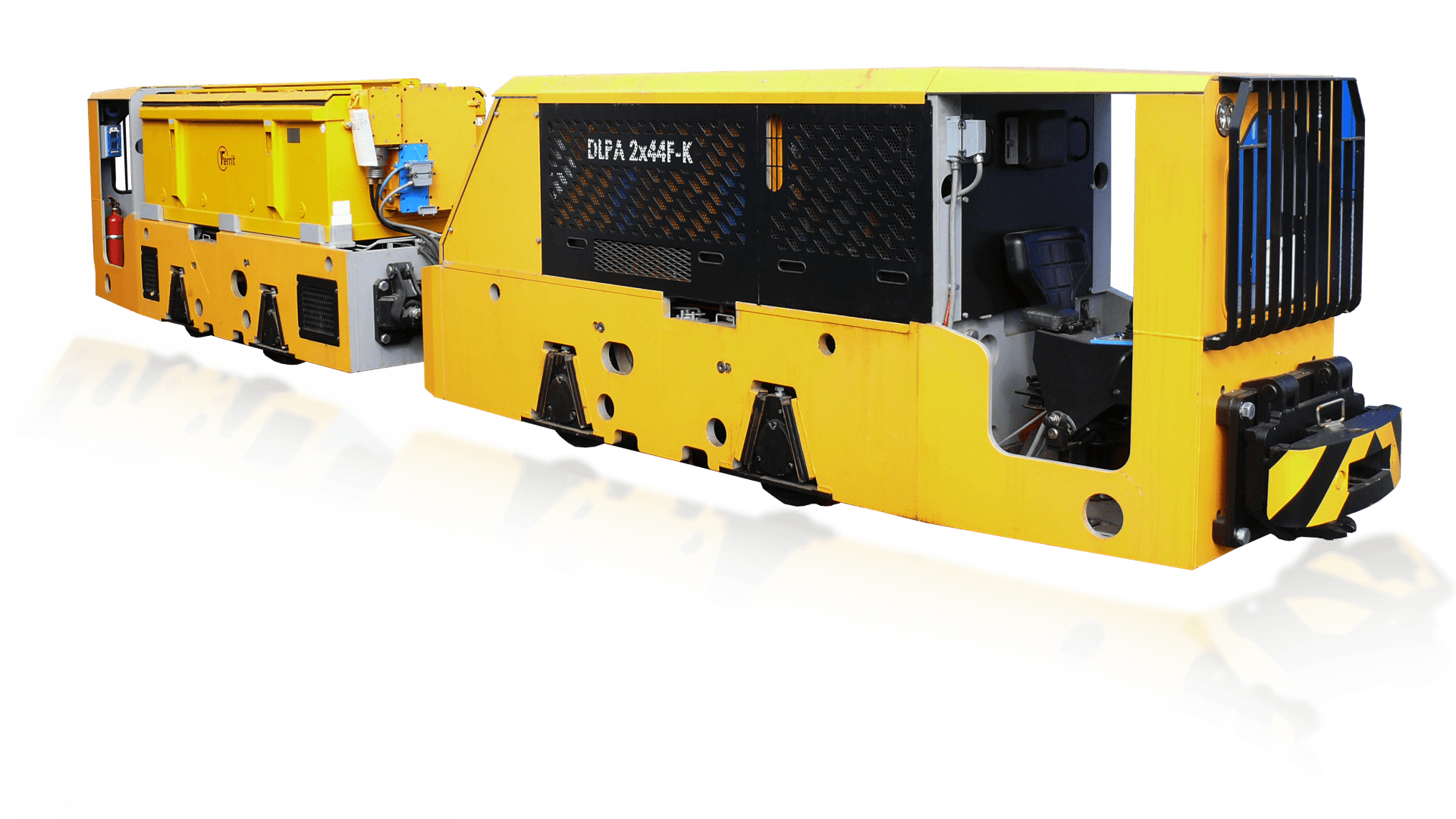

The DLPA2x44F-K Battery-Powered Locomotive is designed for transporting material or personnel on 550 – 900 mm gauge rail tracks at gradients of up to ± 35‰.

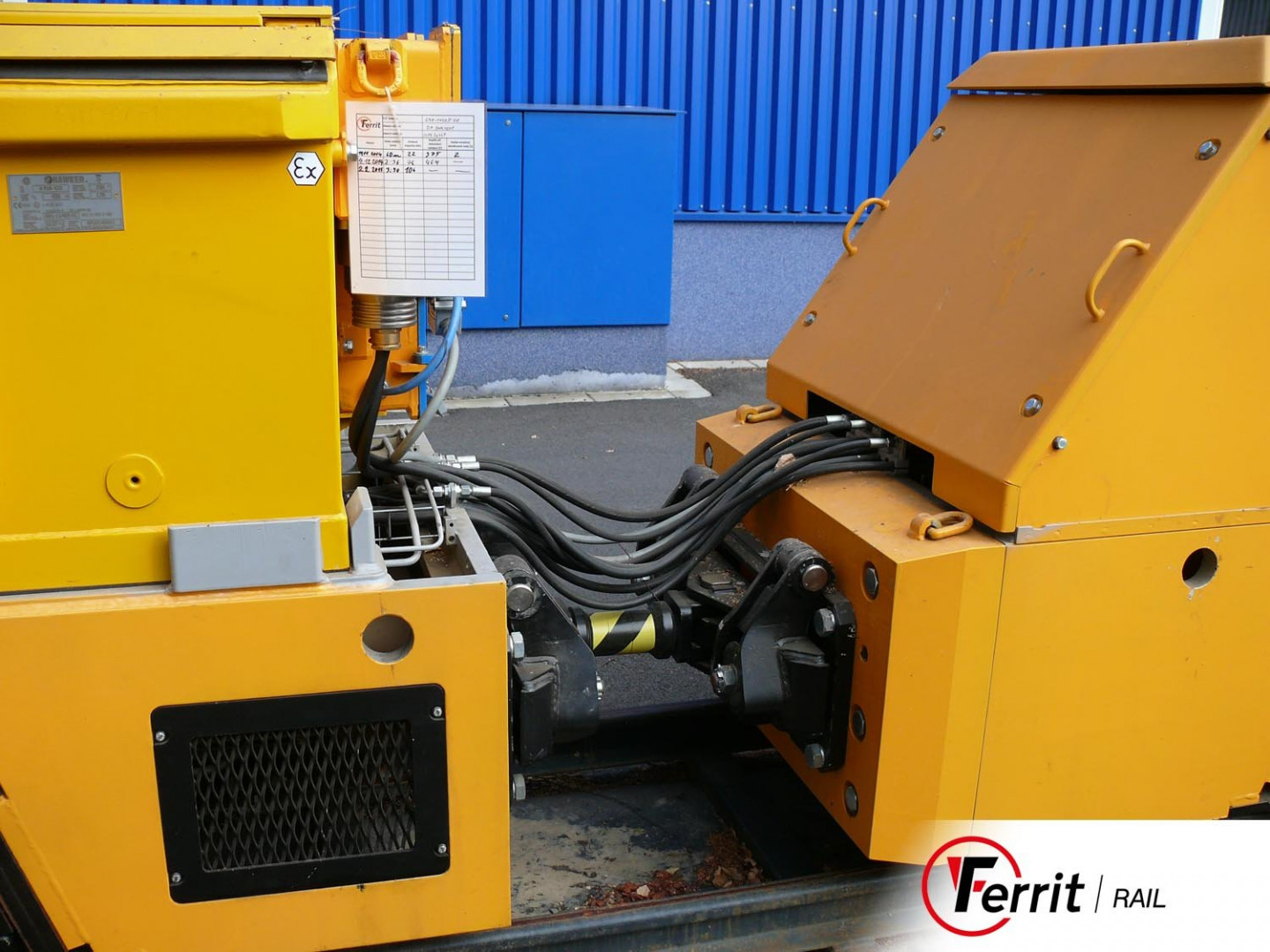

The battery-powered locomotive consists of two sections, front and rear, which are interconnected by a connecting rod. This construction enables driving through curves with a 10 m turning radius. The locomotive is controlled from cabins, which are equipped with control, monitoring and safety elements, as well as other devices, to ensure its safe operation. The cabin design guarantees the operator has a good view of the track and reliable protection against injury and adverse external conditions.

DLPA2x44F-K

Technical parameters

engine power:
4 x 22 kW
max. traction force:
44 kN
gauge:
750 mm
total weight:
18 t

*The stated technical data are only informative and can be modified according to the customer’s requirements. Contact our sales department for more information and a tailor-made solution.
