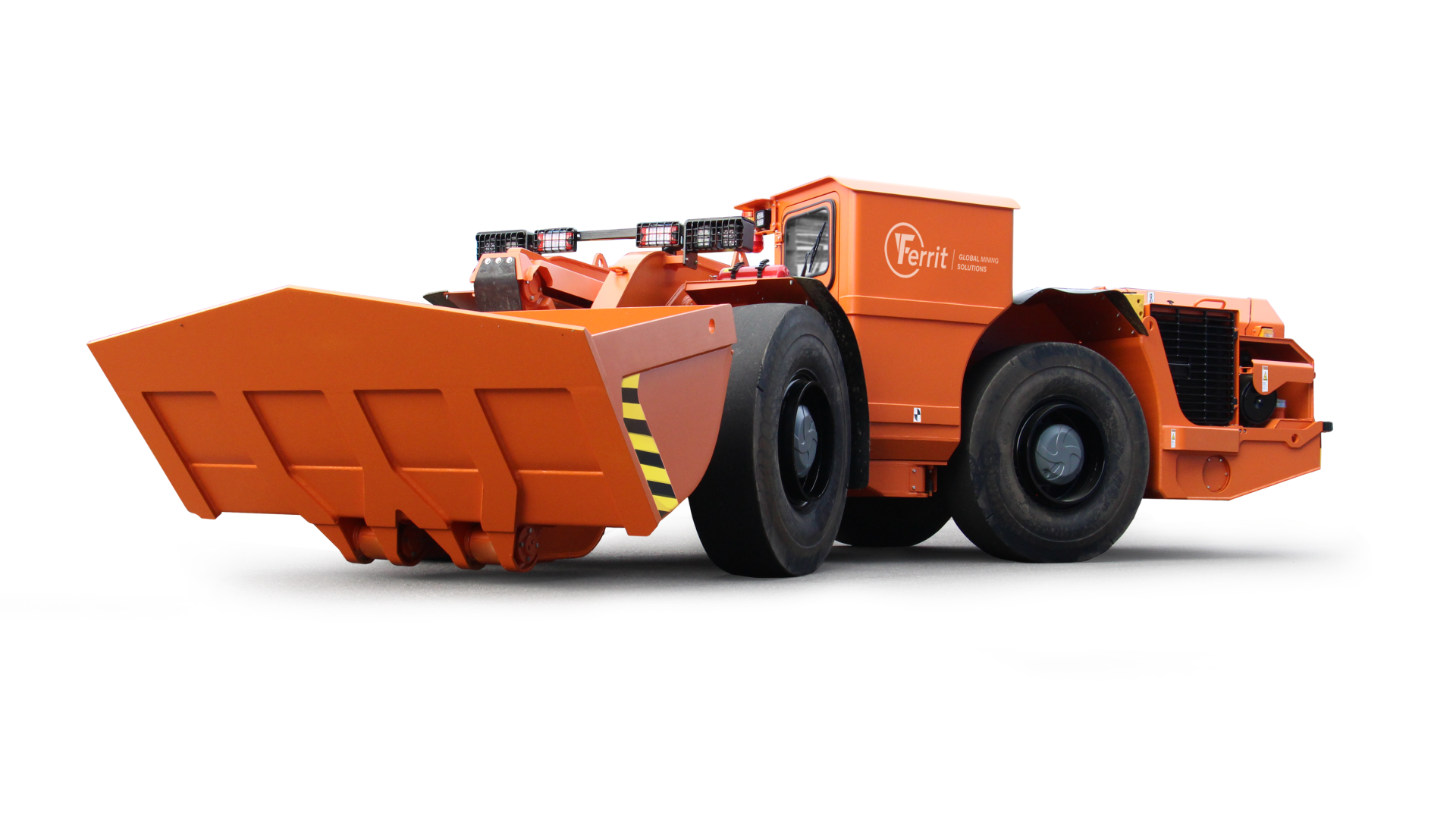

The LHD loader is designed for loading and moving bulk materials over short distances to designated areas. It is mainly used in both low-profile underground mines and large underground operations, including the creation of mines, mining operations and excavation of tunnels during construction. The size of the bucket determines the transport volume, and thus the capacity and performance of the loader. Movement of the loader is ensured by a pair of axles (front, rear) driven by cardan shafts via a gearbox and a hydrodynamic torque converter, which is driven by a diesel combustion engine. The rear axle swings vertically.
LHD Loaders
bucket capacity:
dimension (L-W-H):
inner turning radius:
outer turning radius:
weight (operating):
engine power:
DNK17 FERRIT UGMK
17 000 ±2 % kg
11,1 x 3,15 x 2,85 m
3 550 mm
7 350 mm
48 000 ±5 % kg
298 kW
DNK10 FERRIT UGMK
10 000 ±2 % kg
9,76 x 2,58 x 2,42 m
3 285 mm
6 480 mm
30 100 ±5 % kg
239 kW
DNK14 FERRIT UGMK
14 000 ±2 % kg
10,47 x 2, 96 x 2,6 m
3 140 mm
6 860 mm
39 920 ±5 % kg
280 kW
