TLP60F

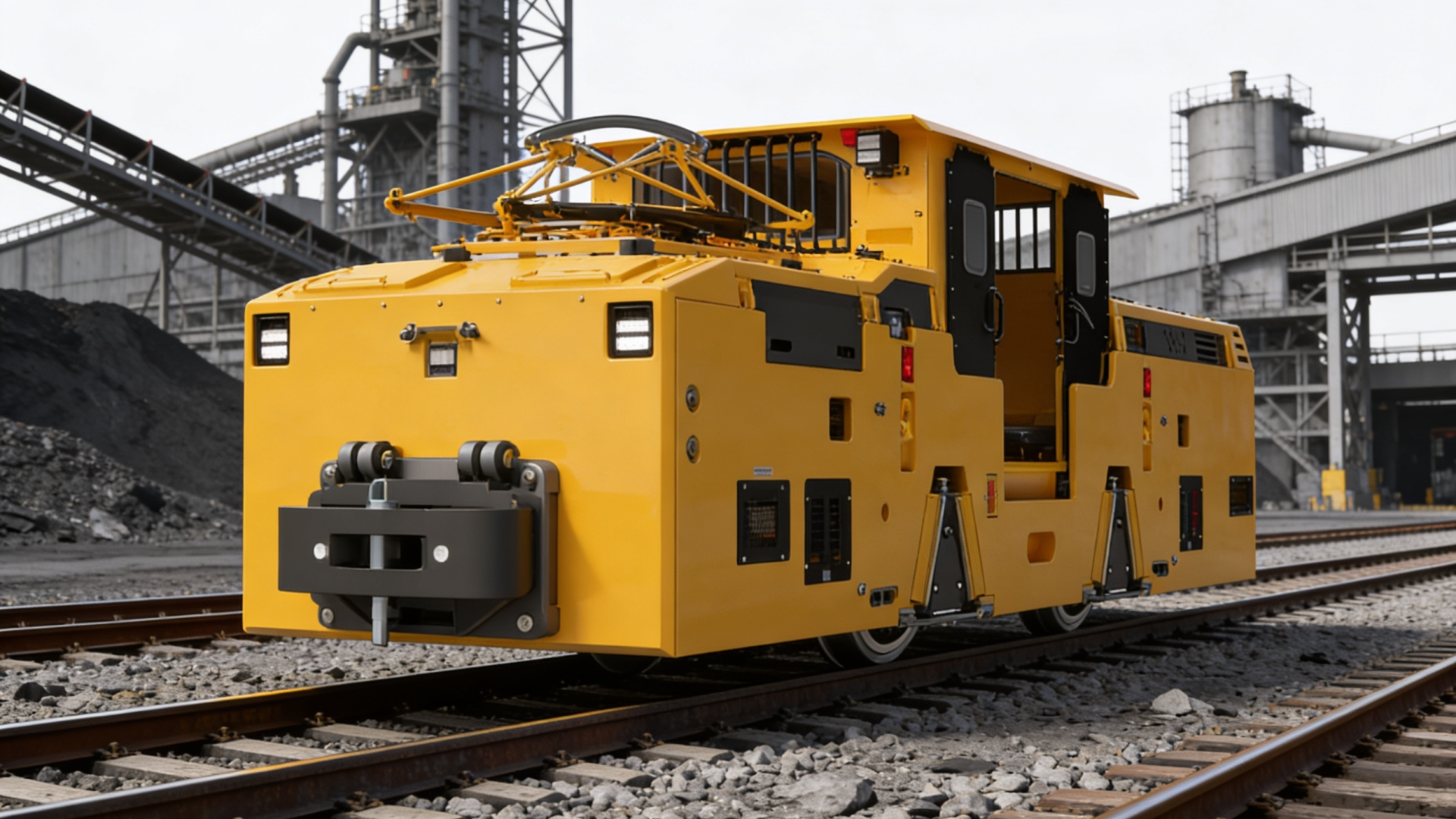

Trolley ground locomotive TLP60F is designed for material or personal transport in horizontal mines without gas or coal dust explosion danger. The locomotive is also suitable for shunting and auxiliary work in mines. The locomotive is designed for transport on rail tracks with maximum inclination of up to 50 ‰.

The locomotive can be dismantled into two parts: the cab and the frame for transport.

The locomotive is controlled from the driver's cabin, which is equipped with control, monitoring and protection devices and instruments serving to its safe operation.

The locomotive is powered by two three-phase asynchronous electric motors controlled by a frequency converters.

Electric equipment provides power control of electric motors drives, monitoring and diagnostics of operating conditions and parameters of locomotive, such as temperature, level and pressure of fluids, locomotive speed, etc. The visualization units in the driving cabin of locomotive allow the operator to follow the above mentioned conditions and also reports of the faults of locomotive conditions. All information monitored by electrical system are stored on a memory card for the diagnostics of locomotive operation.
