Electrohydraulic Power Unit

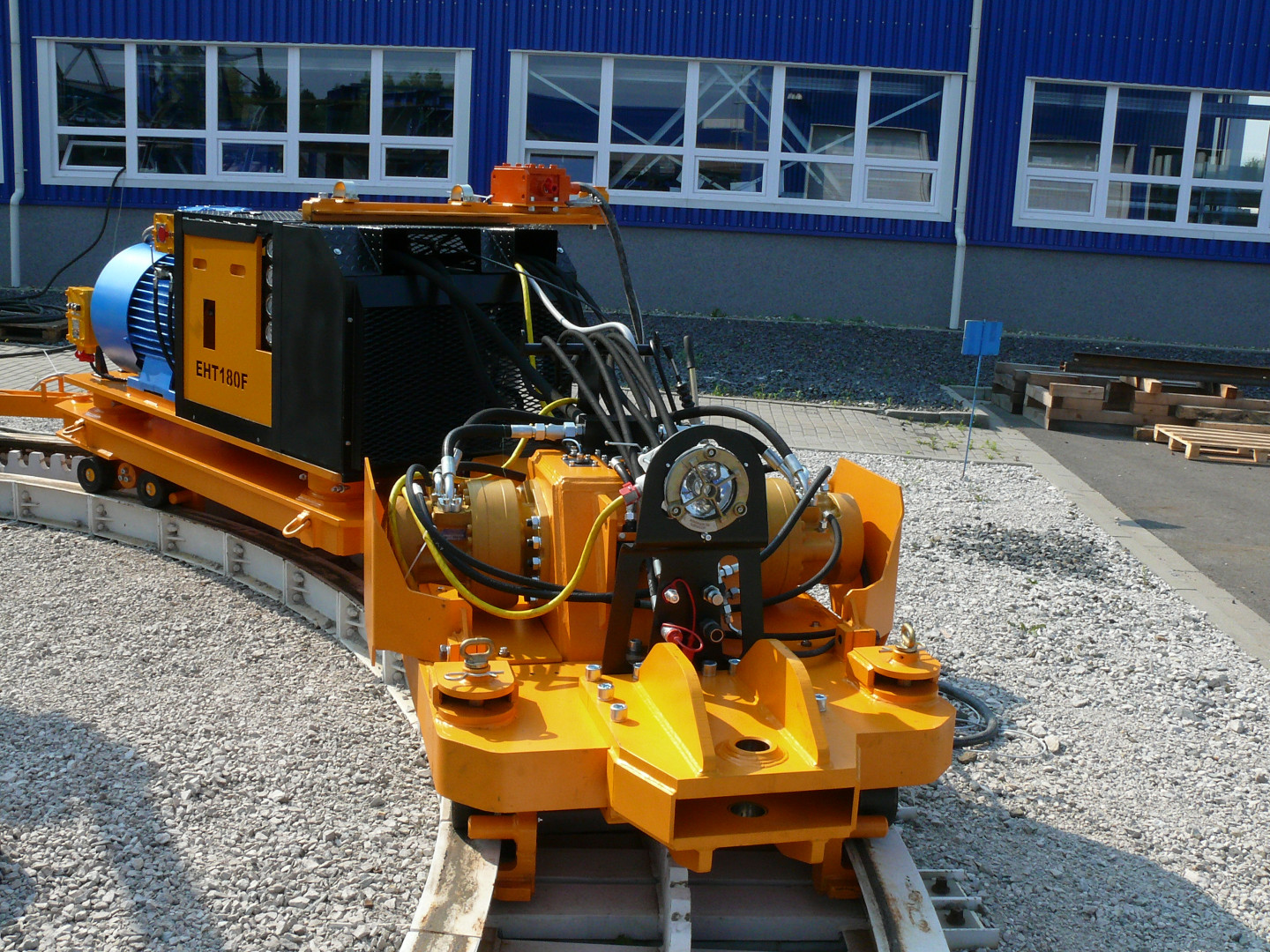

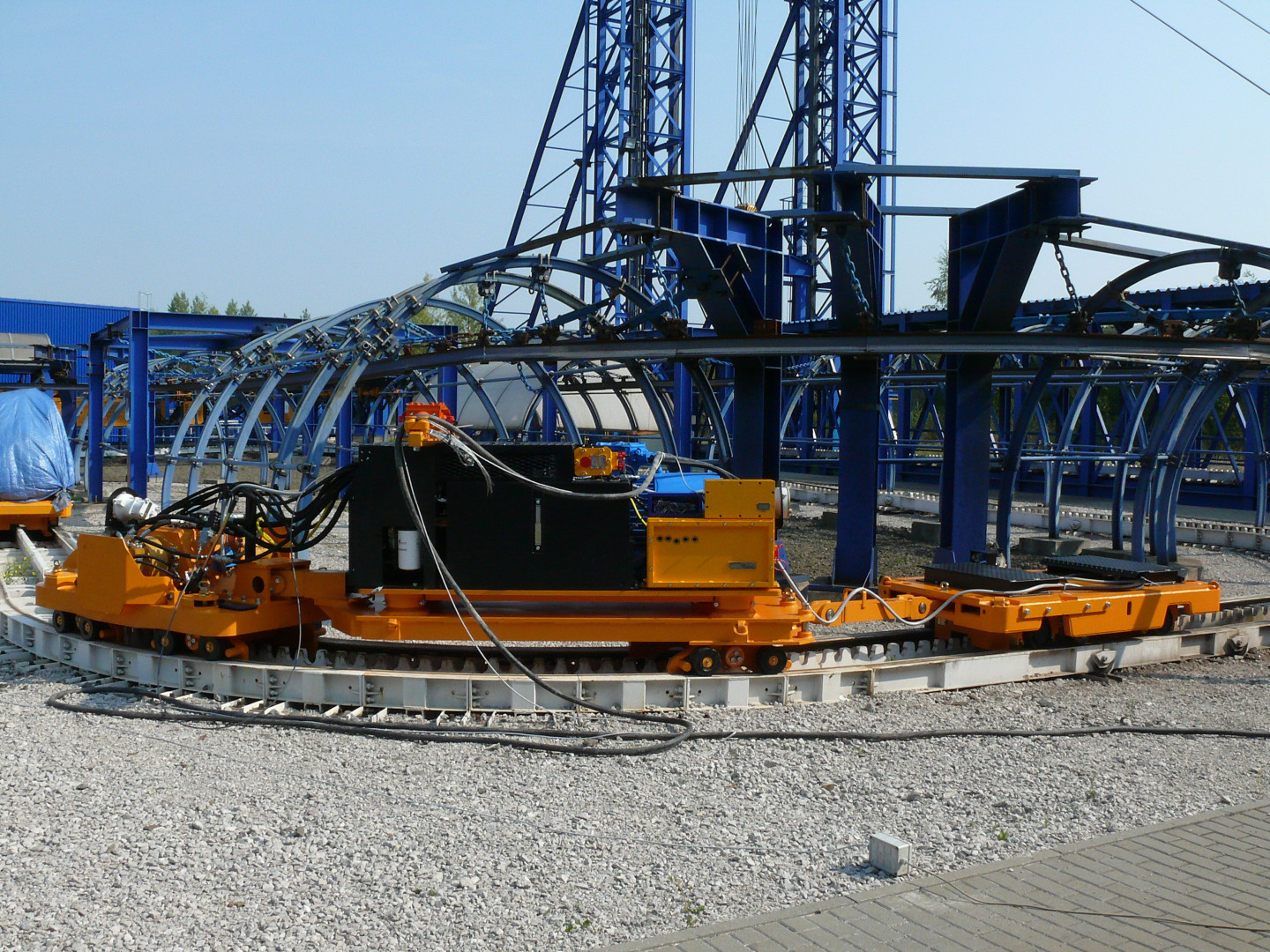

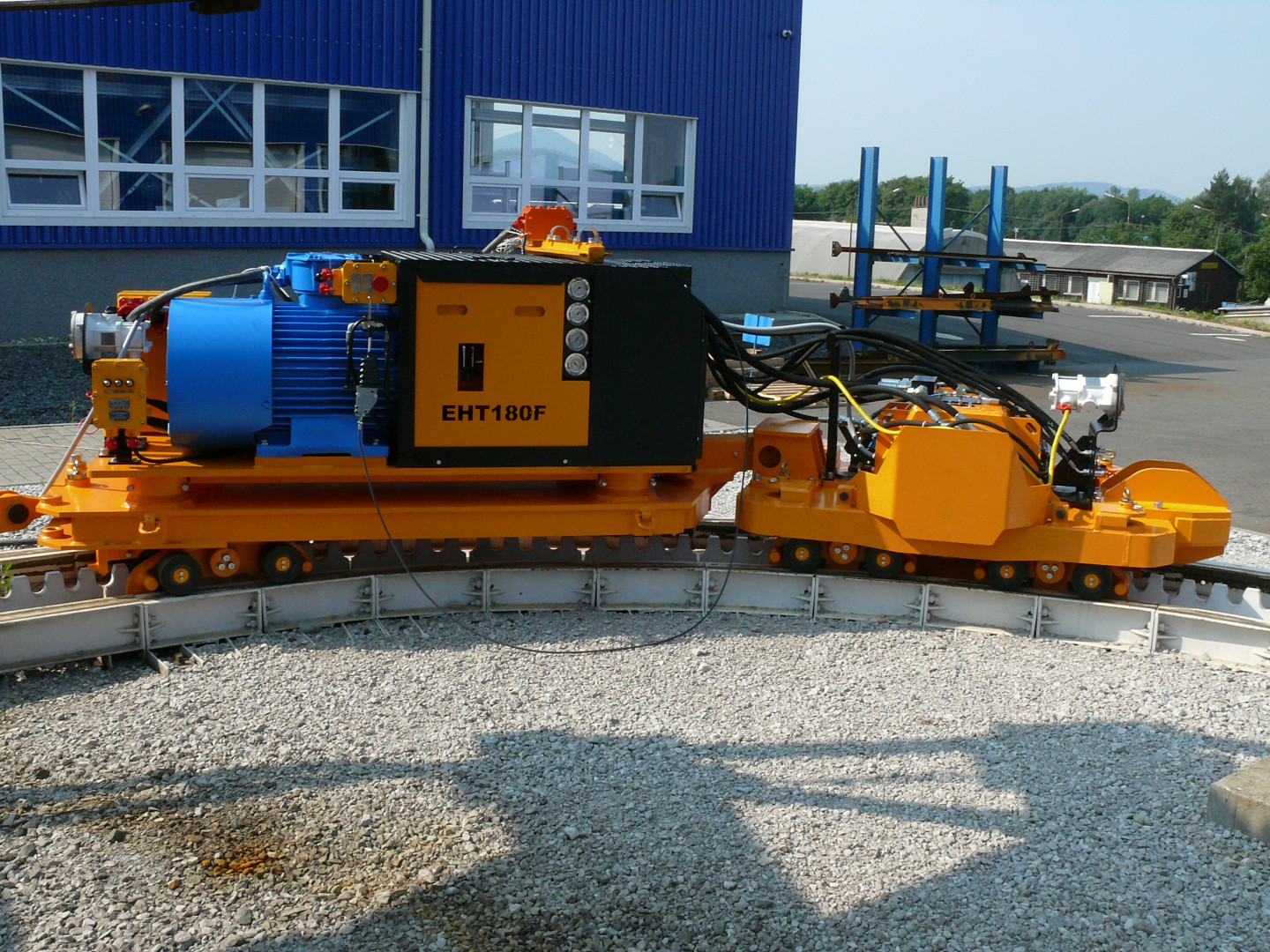

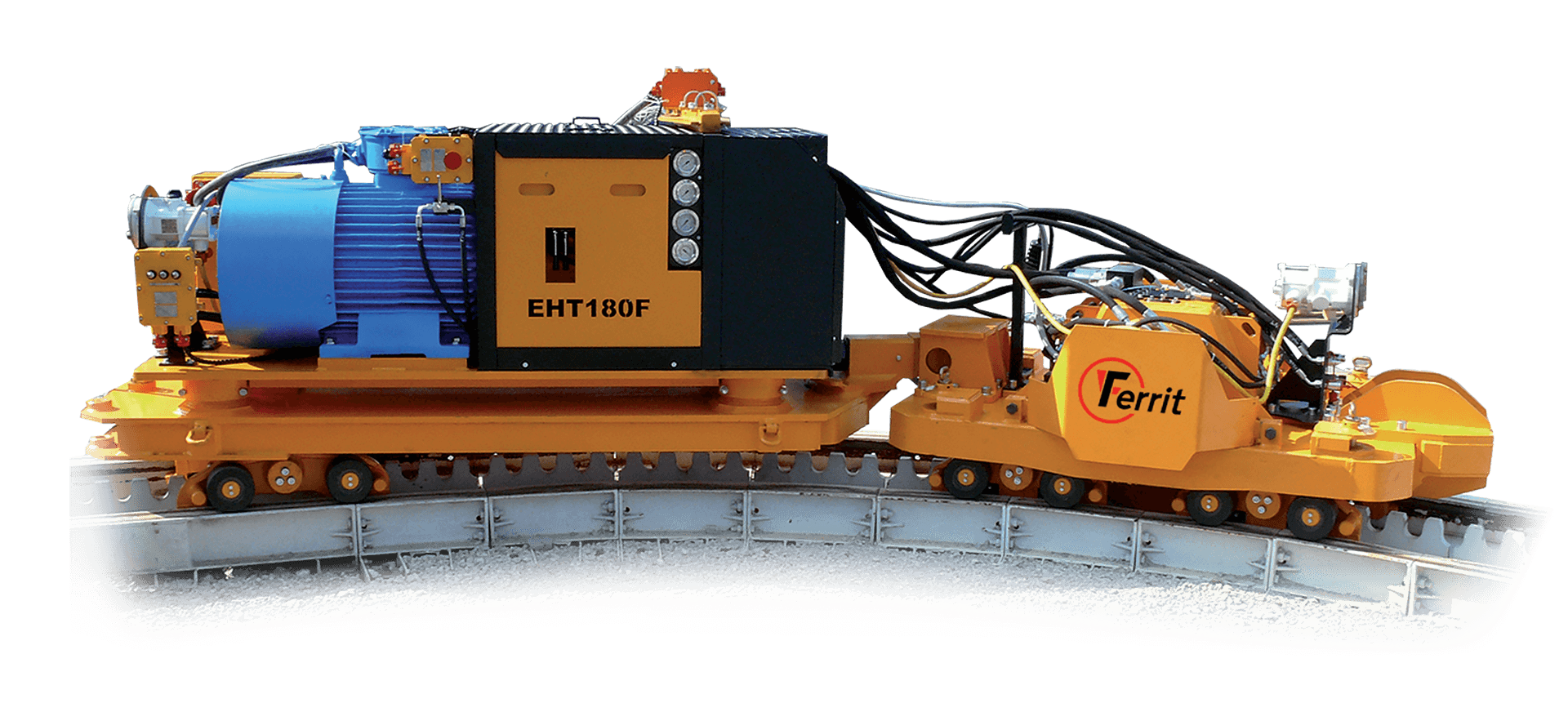

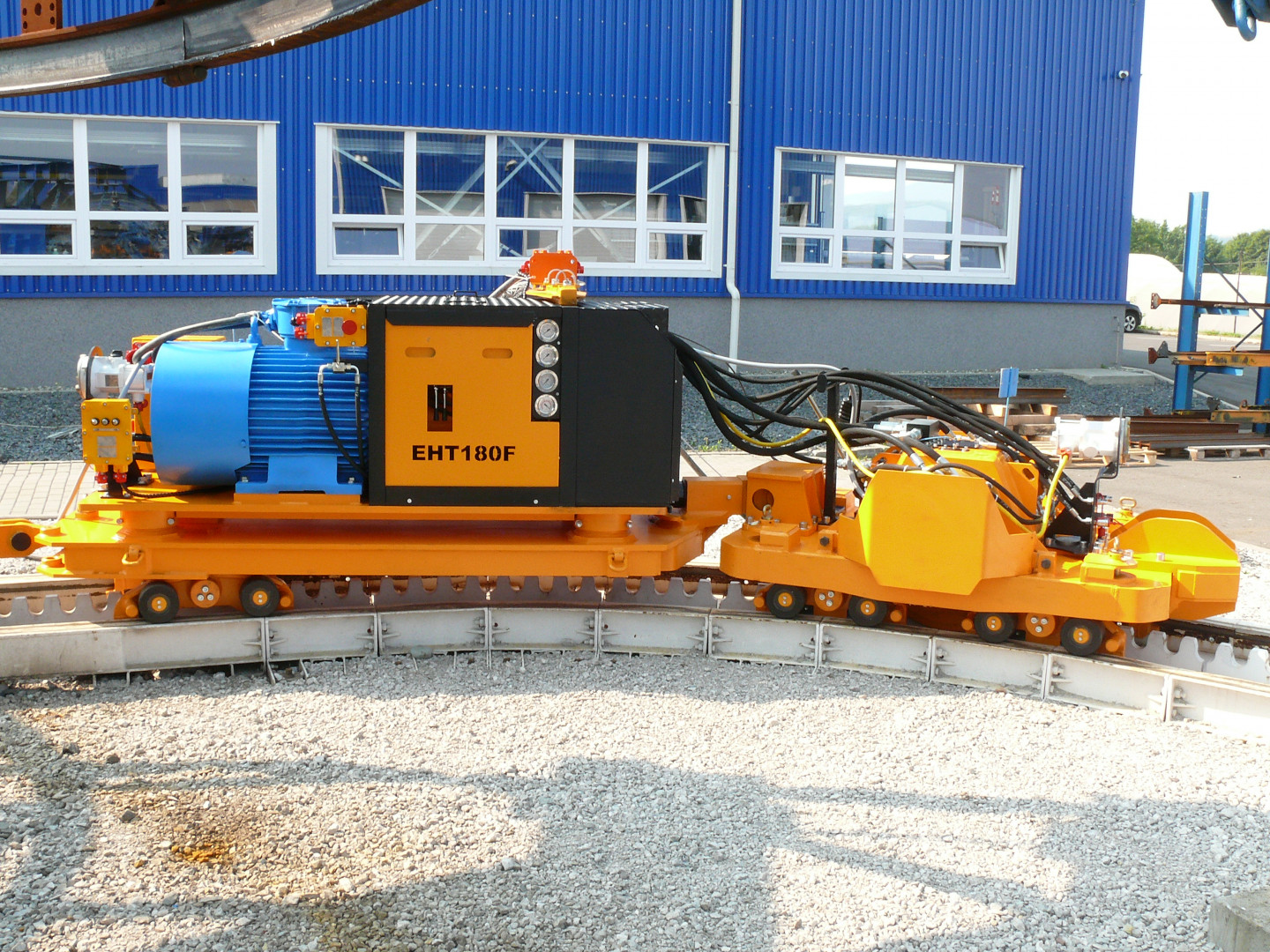

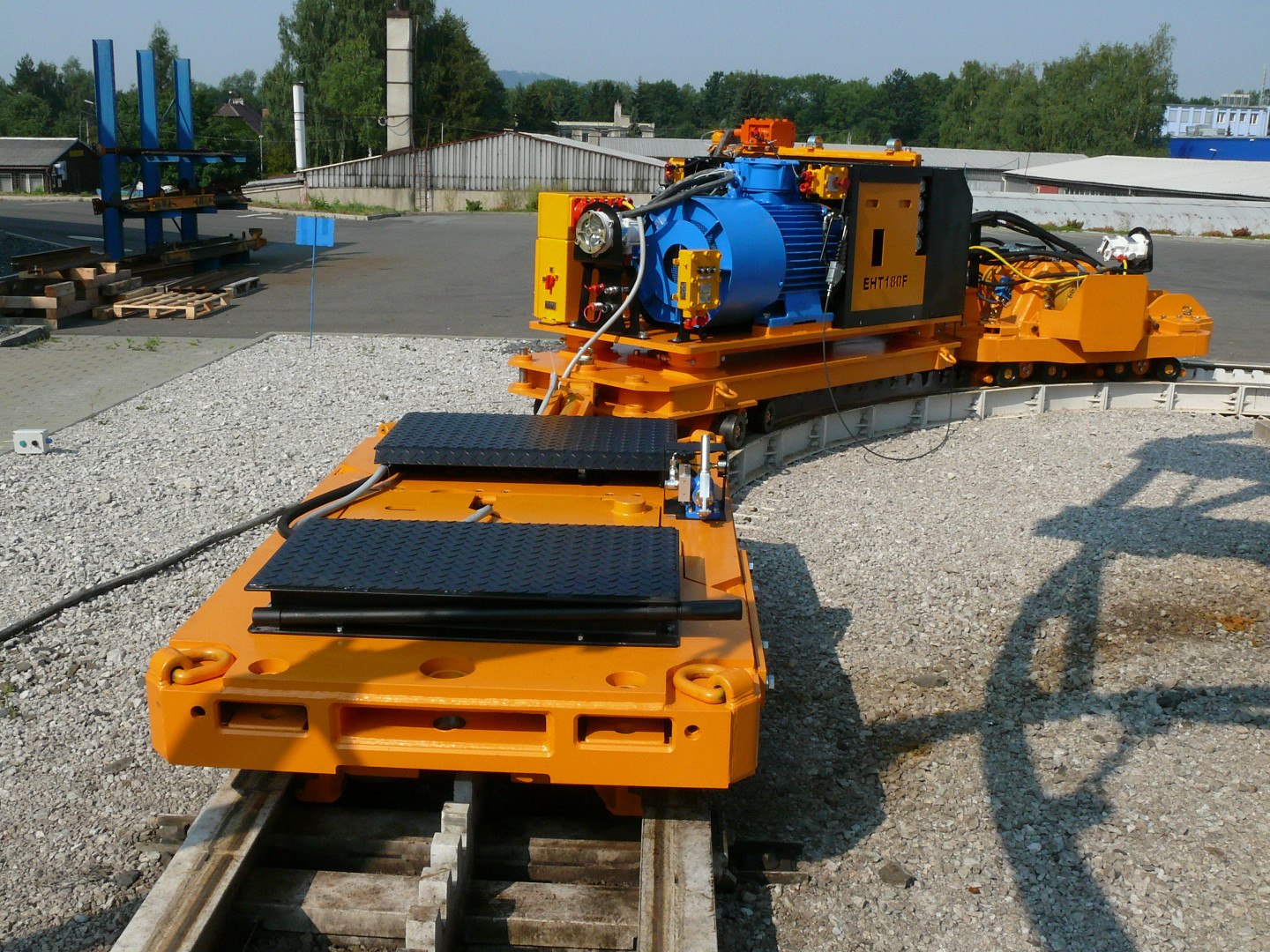

The EHT180 Electrohydraulic Power Unit  is traction equipment designed for transport of sets along ground rack rail tracks on a horizontal plane and inclines of up to 35°.

The power unit usually consists of a driving unit, motor unit and mechanical emergency brake. Individual parts of the power unit are interconnected with connecting rods and by additional steel safety ropes. The power unit´s movement is ensured by a pinion wheel connected to a planetary gearbox or hydraulic motors within the driving unit.


Technical parameters

engine power:
90 kW
max. traction force:
110 - 360 kN
600, 900 mm
total weight:
max. 10 t

*The stated technical data are only informative and can be modified according to the customer’s requirements. Contact our sales department for more information and a tailor-made solution.
