Electro-hydraulic Manipulator

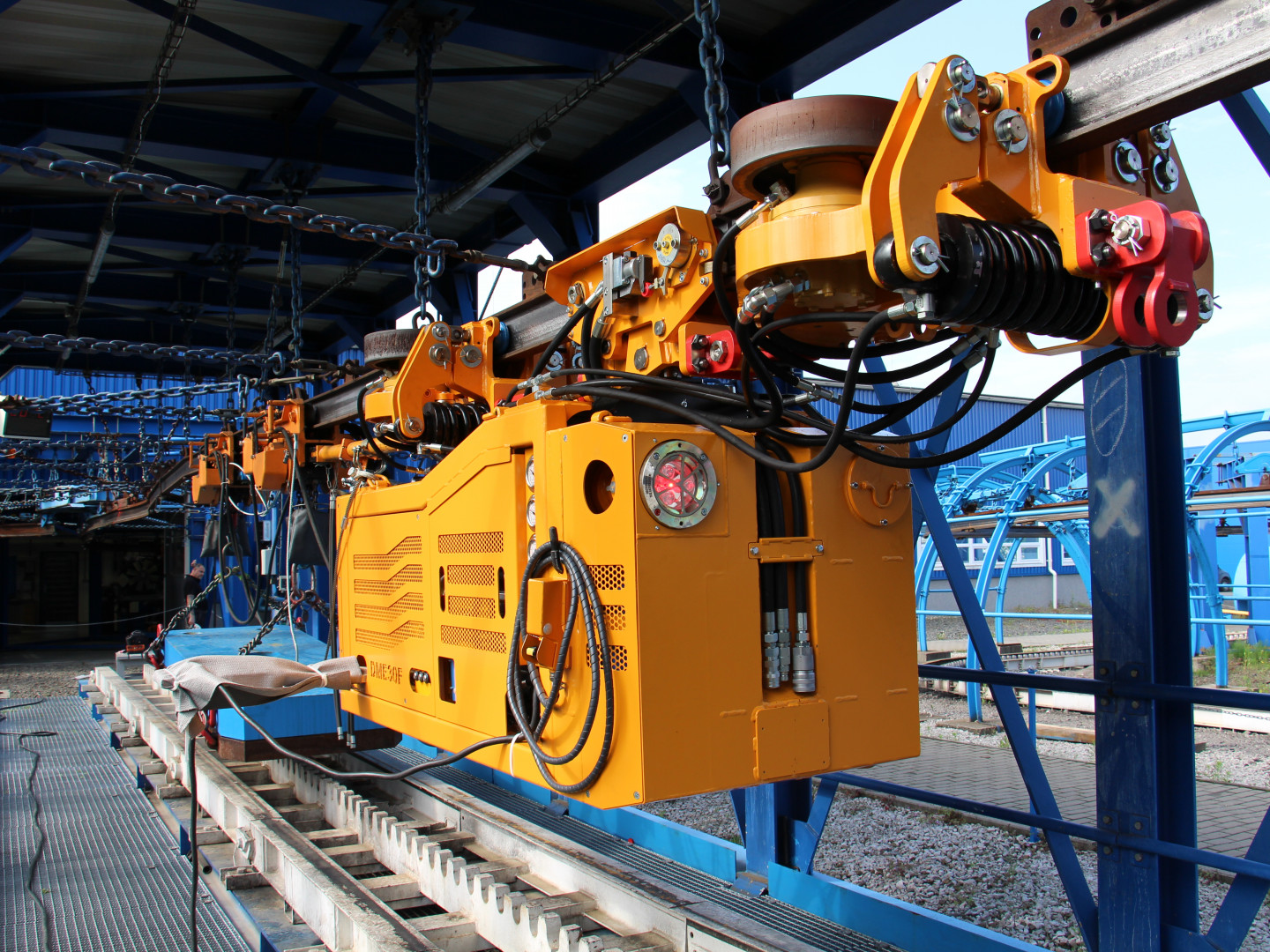

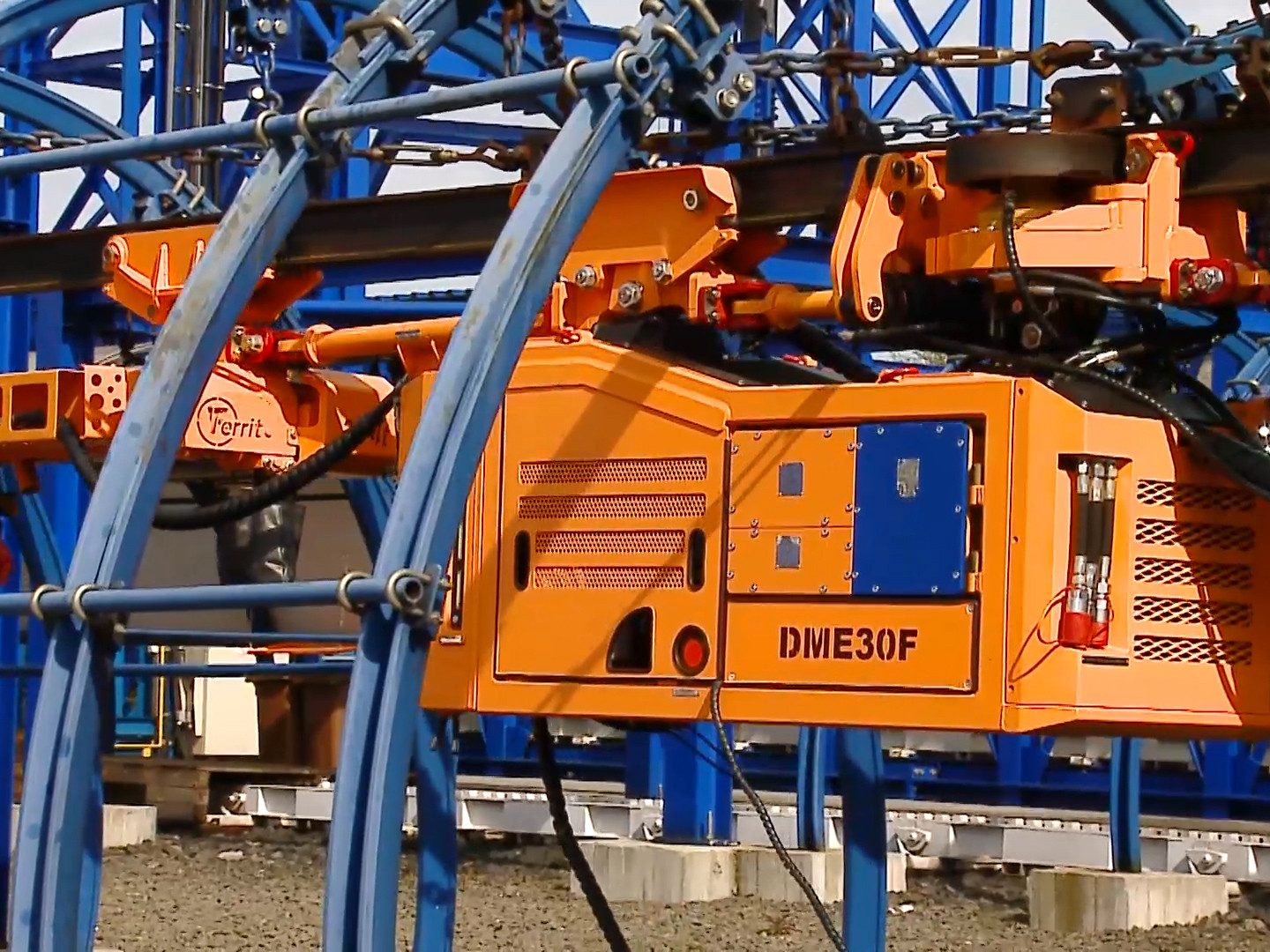

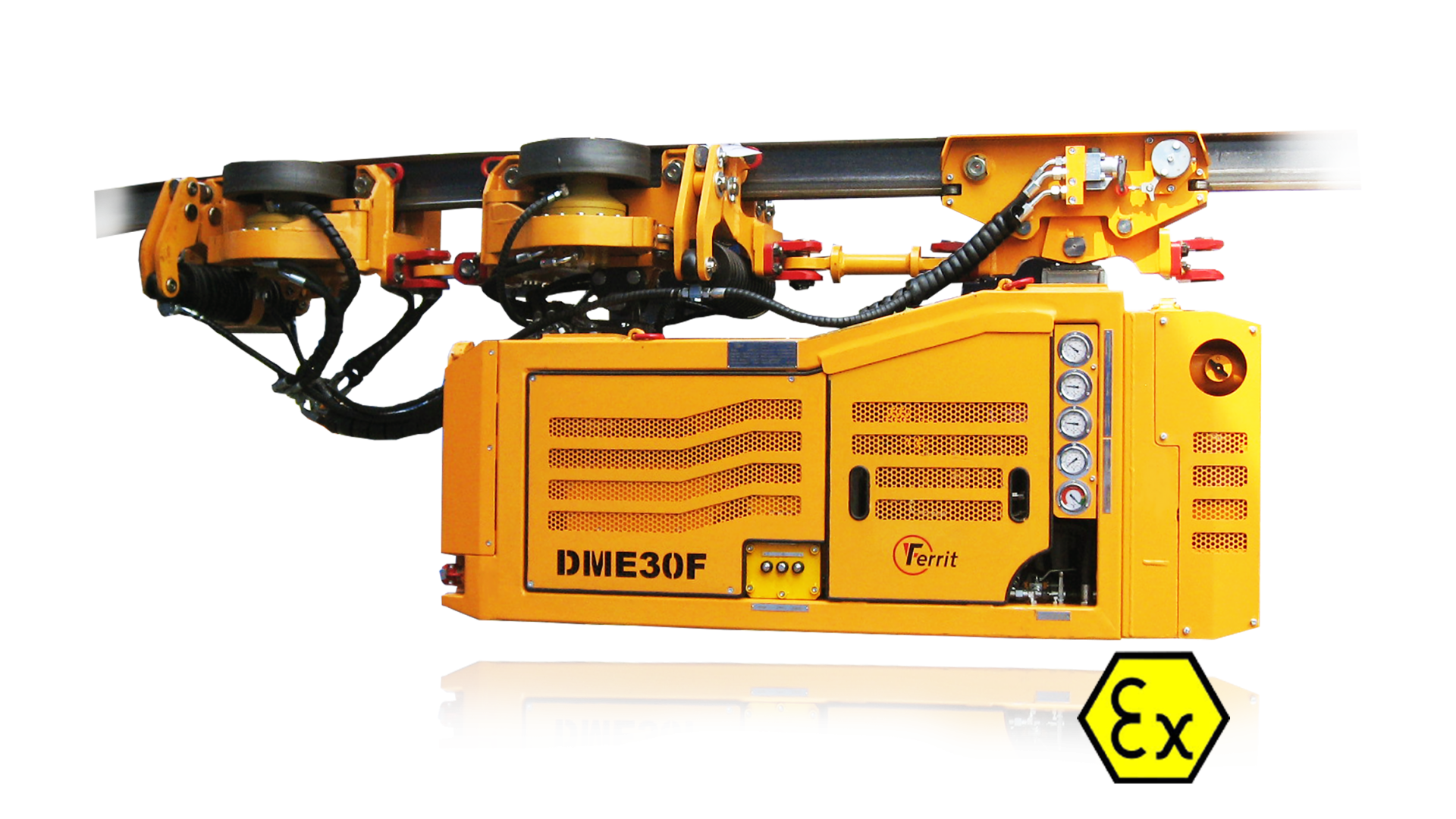

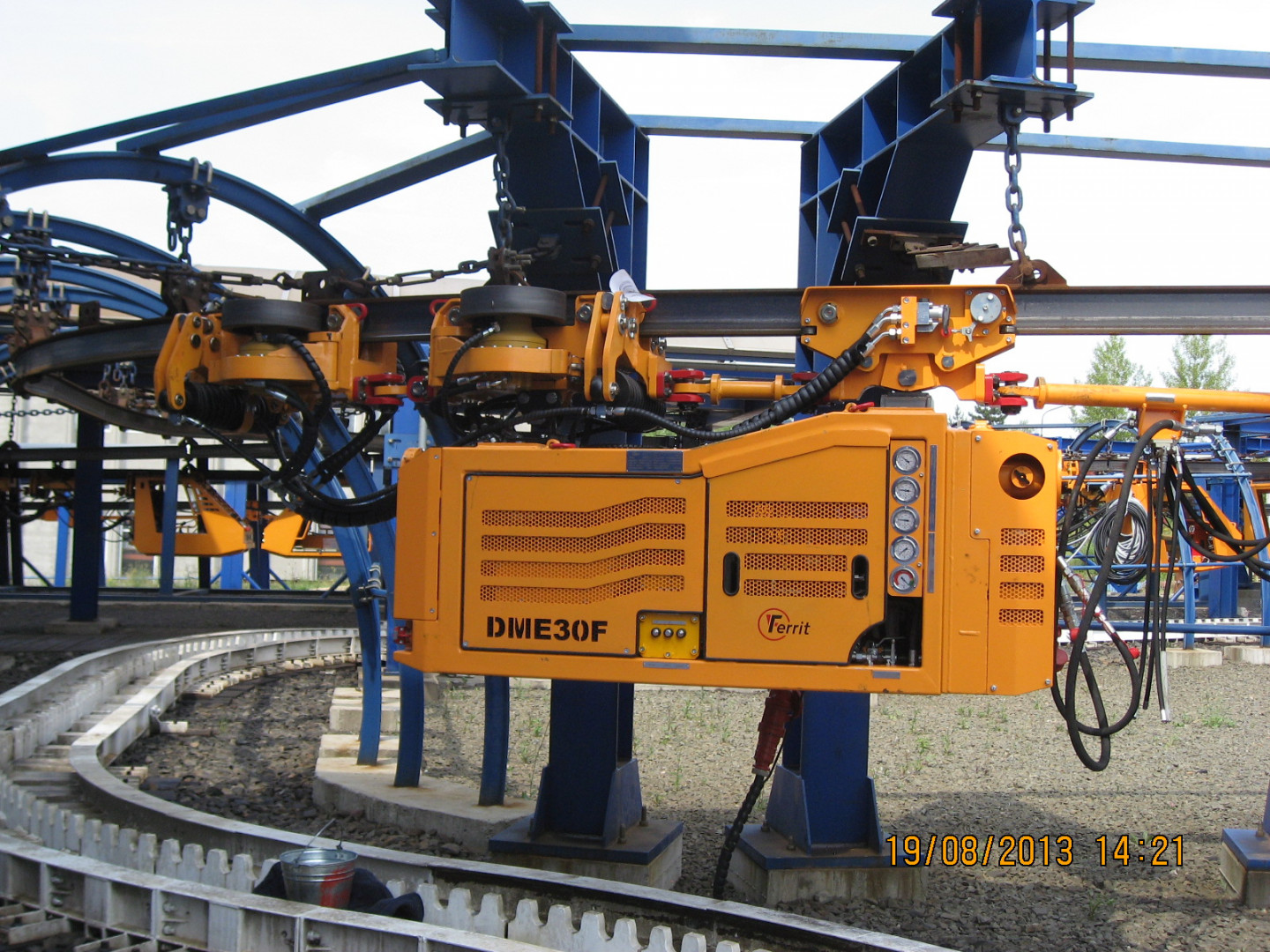

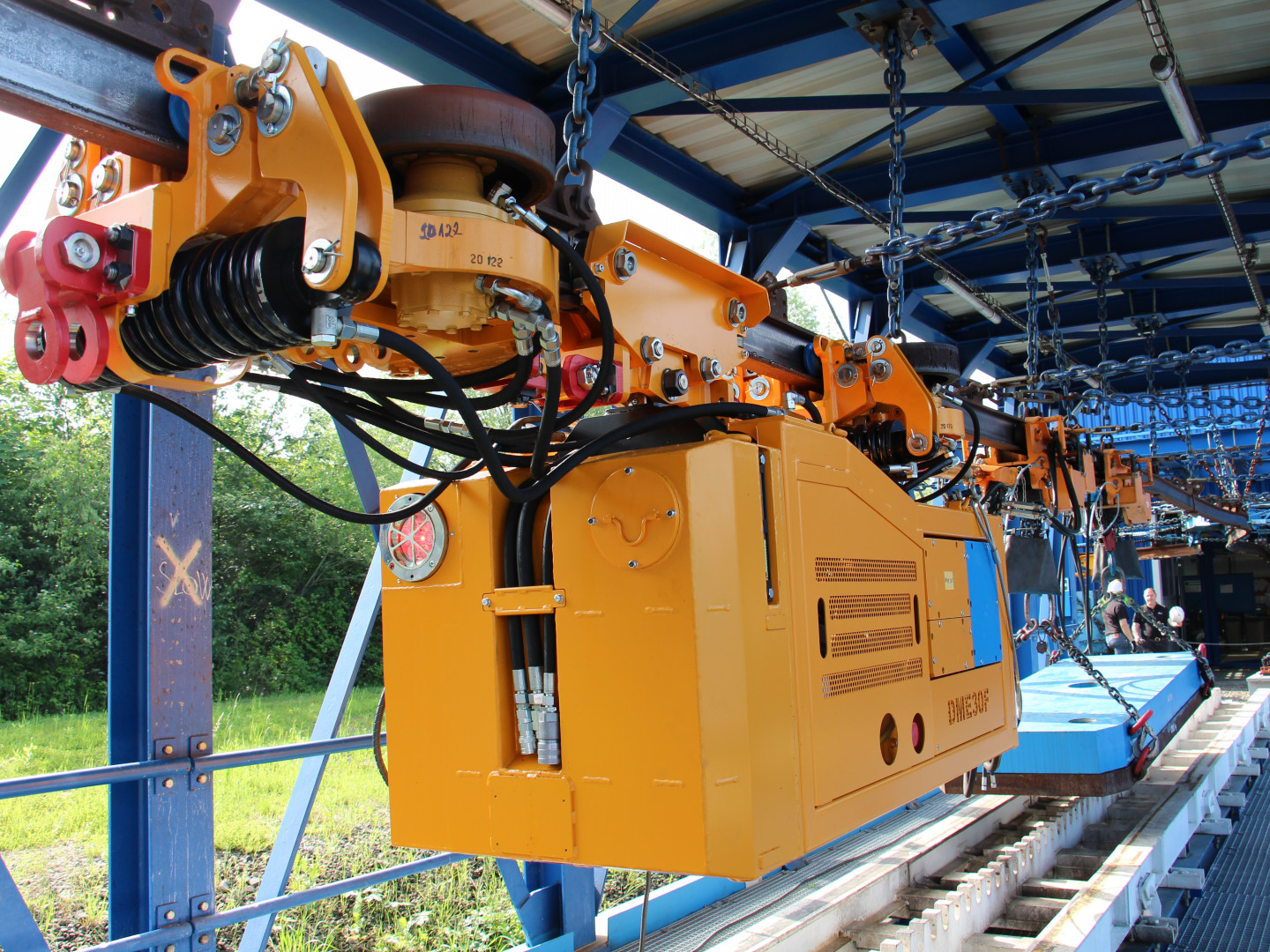

The DME30F Electro-Hydraulic Manipulator is traction equipment designed for auxiliary handling of mining train sets on monorail tracks with inclines of up to 30°, with the option of adapting to a monorail rack track.

The manipulator is particularly suitable for mining drivage works and for underground material reloading depots. It is driven by a flameproof electric motor and hydraulic unit, which is used for powering the manipulator´s drive or lifting equipment, such as the NZH2/4 and/or other small auxiliary mechanization equipment (bolt drills, impact wrenches, pick hammers, pumps, etc.).

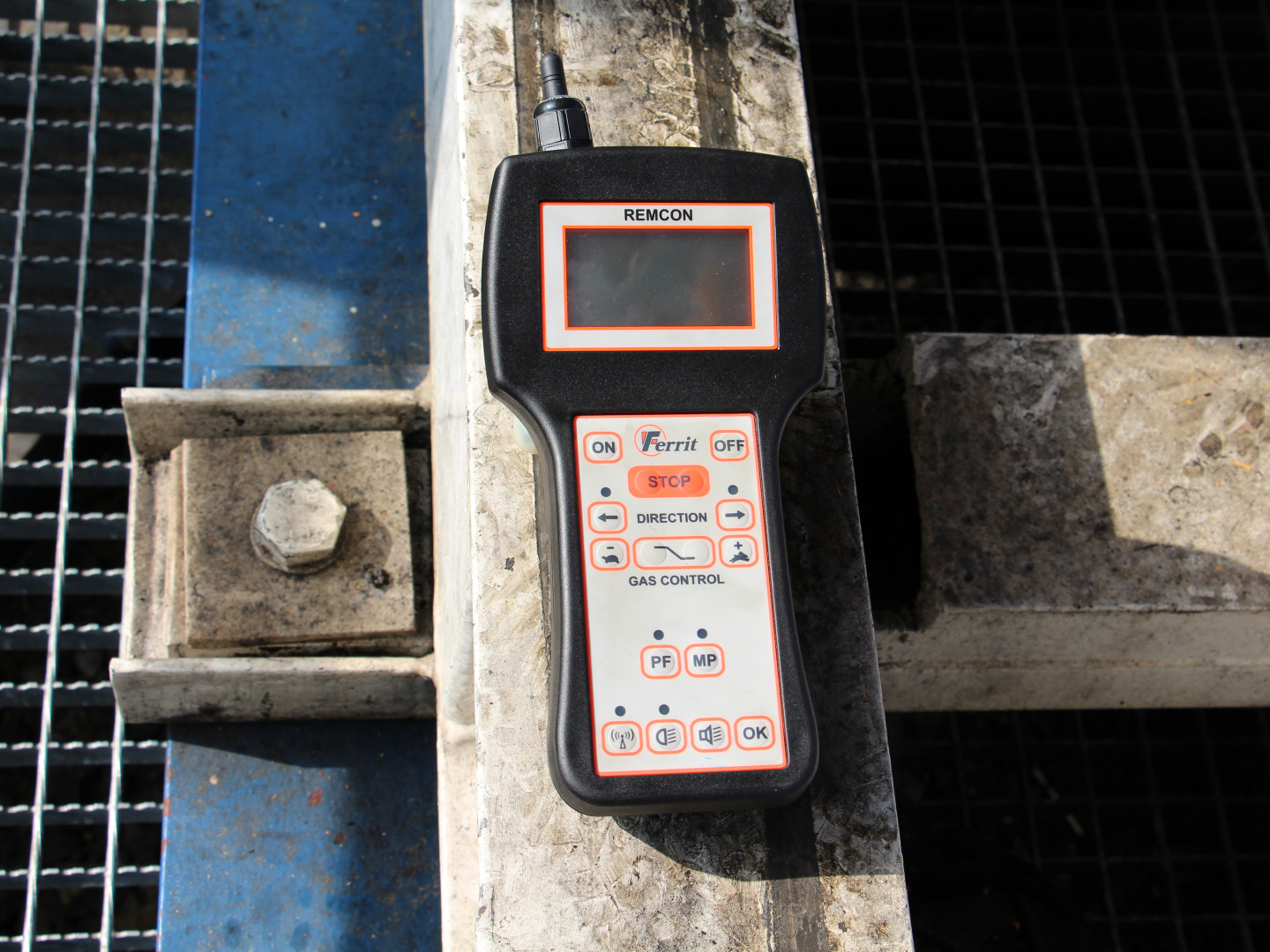

The manipulator can be operated with a remote control.


Technical parameters

engine power:
30 kW
number of drive units:
1 - 2
max. speed:
3,2 km/h
max. traction force:
25 / 50 kN

*The stated technical data are only informative and can be modified according to the customer’s requirements. Contact our sales department for more information and a tailor-made solution.
