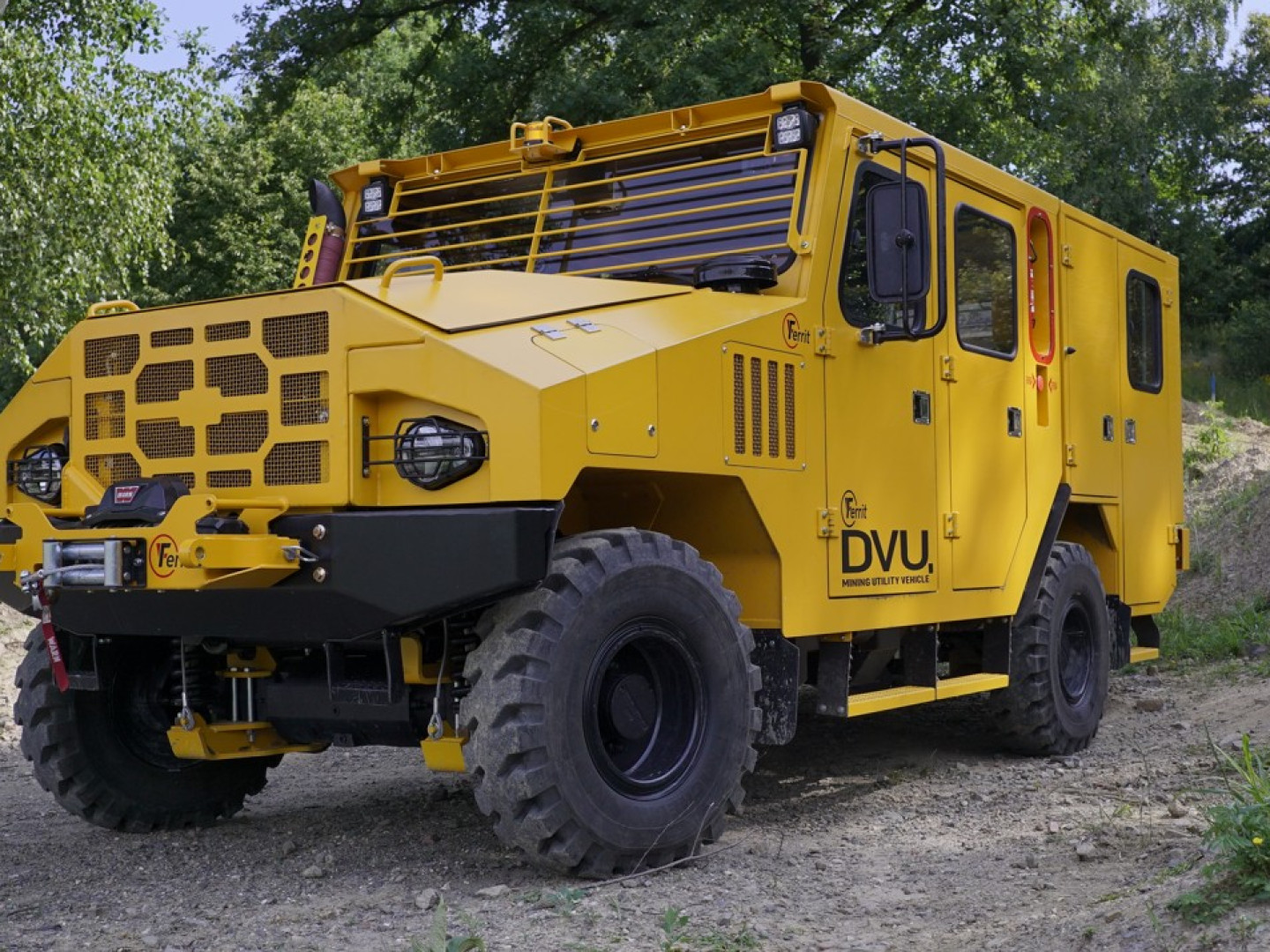

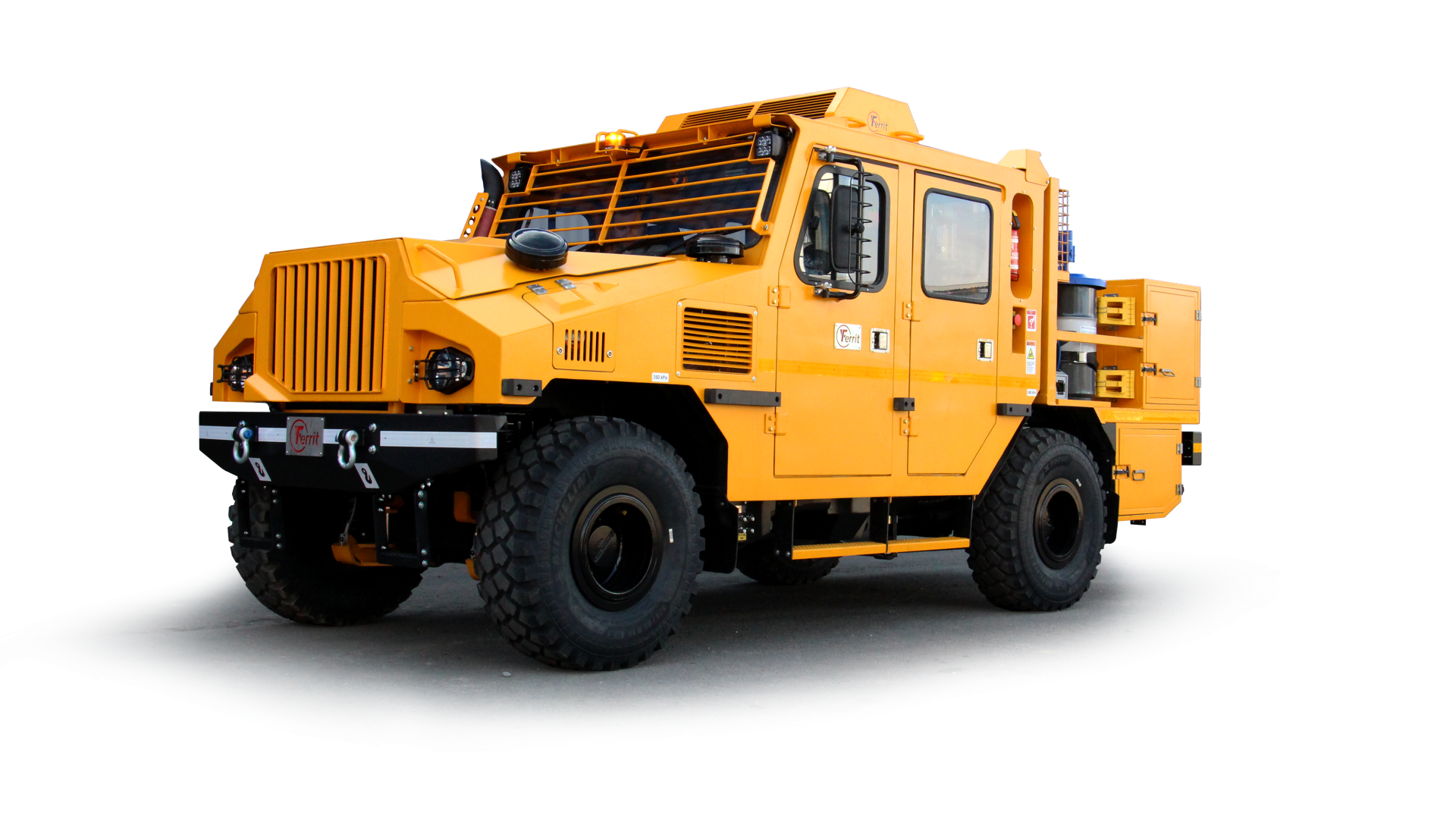

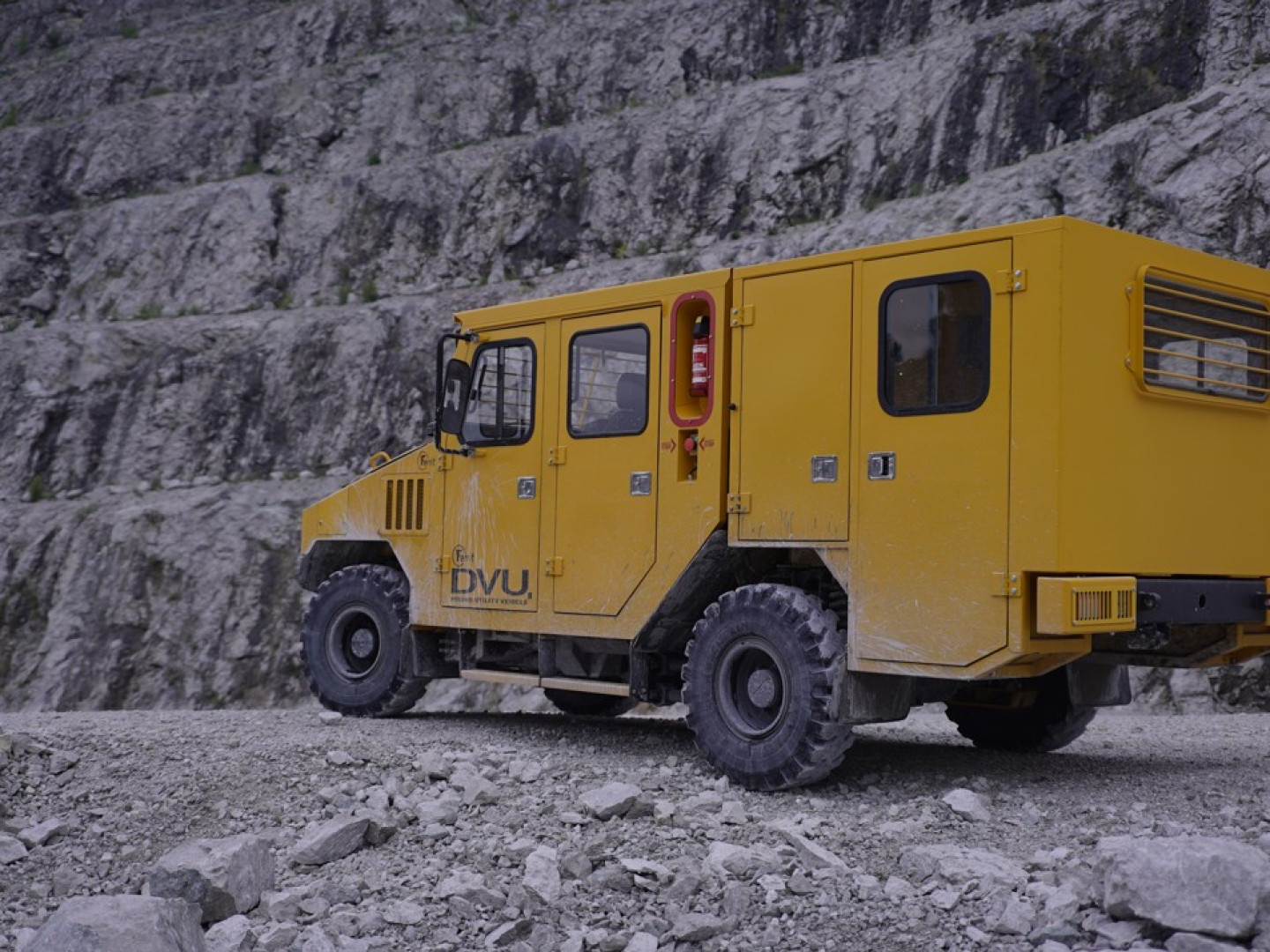

DVU

Utility vehicle

The robust two-axle vehicle with an all-metal body is the ideal solution for transporting people and materials over longer distances in a demanding mining environment. The basic version of the vehicle is adapted for driving on unpaved roads, in rough terrain with the possibility of overcoming water obstacles.

Thanks to its modular design, the DVU offers the possibility of individual modifications and the addition of a wide range of accessories to enhance the functionality of the vehicle according to the customer's specific needs.

Functions:

  • Liquid-cooled engine
  • Dual circuit braking system
  • Hydraulic power steering (steered front axle)
  • Lighting suitable for driving on public roads
  • Mechanically sprung driver and passenger seat
  • Possibility of applying various attachments to the load platform


Types of Vehiclers:

  • Universal platform
  • Handling arm
  • Water tanker
  • Fuel tanker
  • Scissor lift platform
  • Mobile DEPOT (fully equipped work table, diesel generator, powerful welding unit, hydraulic circuit for connecting additional equipment)
  • Inspection vehicle
  • Other designs based on customer requirements


Optional equipment:

  • High-pressure cleaner
  • Compressor
  • Welding machine
  • Hydraulic winch
  • and other additional equipment requested by the customer
DVU

Technical parameters

max. speed:
30 km/h
dimension (L-W-H):
5 419-5 800 x 2 090 x 2 600 mm
weight (standby):
4 900 kg

*The stated technical data are only informative and can be modified according to the customer’s requirements. Contact our sales department for more information and a tailor-made solution.

Contact Us

Types of DVU Vehicles

SERVICE NDVU-S01F

Basic description

The module is designed to transport two people and also serves as a service cabin. It allows for the safe transport of workers and the necessary tools and equipment directly to the site of operation. It is mounted on the vehicle frame.

Basic technical specifications

External dimensions (L x W x H)

1 780 x 2 000 x 1 912 [mm]

Passenger capacity

2 persons

Load capacity

1 100 [kg]

NDVU-UP01F PLATFORM

Basic description

The platform is designed for transporting material, spare parts, or other technical equipment in underground operations. The surface of the loading area is equipped with an anti-slip pattern. The platform can be upgraded with folding side panels up to 720 mm high. The platform is equipped with two boxes on the sides for storing tools.

Basic technical specifications

External dimensions (L x W x H)

1 741 x 2 000 x 1 900 [mm]

Dimensions of loading area (L x W x H)

1 568 x 2 000 x 1 170 [mm]

Load capacity

1 600 [kg]

NDVU-PR01F PLATFORM WITH HANDLING ARM

Basic description

The superstructure is designed for transporting materials and handling loads using a hydraulic arm. Integrated folding hydraulic supports ensure vehicle stability when handling heavy loads. The surface of the loading area is equipped with an anti-slip pattern. The platform can be upgraded with folding side panels up to 720 mm high. The platform is equipped with two boxes on the sides for storing tools.

Basic technical specifications

External dimensions (L x W x H)

1 744 x 2 000 x 1 975 [mm]

Dimensions of loading area (L x W x H)

1 095 x 2 000 x 1 170 [mm]

Load capacity

1 100 [kg]

Hydraulic arm load capacity

1 000 - 375 [kg]

Arm reach

1,2 - 3,2 [m]

NDVU-DEPO02F MOBILE DEPO

Basic description

The module is specially designed as a mobile service station (depo) and also as a means of transport for materials or spare parts needed for the maintenance of machinery and equipment in underground operations. The interior of the platform is divided into a service section (storage boxes, tool holders) and a transport section. The depo is equipped with a pneumatic grease gun with a grease tank, a pneumatic compressor, and a welding machine, which also serves as a source of electricity. All built-in equipment is powered by the machine's hydraulic circuit. The surface of the loading area is equipped with an anti-slip pattern. The platform is equipped with folding side panels with a height of 720 mm.

Basic technical specifications

External dimensions (L x W x H)

1 780 x 2 000 x 1 975 [mm]

Dimensions of loading area (L x W x H)

1 440 x 1 200 x 1 040 [mm]

Load capacity

1 100 [kg]

Mounting on the vehicle

Fixed mounting (screw structure)

Hydraulic arm load capacity

1 000 - 375 [kg]

Arm reach

1,2 - 3,2 [m]

Arm control

Hydraulic lever

Lubrucation press

Winding drum, capacity 50 [kg]

Compressor

450 [l/min]

Welding unit

6 [kVA]

NDVU-PHM01F FUEL TANK

Basic description

The module is designed for transporting and dispensing fuel (e.g., diesel) in underground mining operations. Thanks to the built-in pumping unit, it allows local refueling directly in the mining area, without the need to return the machines to a central filling station. The pumping hose stored in the winch is equipped with an automatic dispensing nozzle. The tank is equipped with a lockable lid, safety valve, ventilation, filling neck, and level indicator.

Basic technical specifications

External dimensions (L x W x H)

1 740 x 2 000 x 1 280 [mm]

Tank volume

900 [l]

NDVU-ZP01F LIFTING PLATFORM

Basic description

The module serves as a lifting platform for two people and is designed for performing assembly, inspection, and maintenance work at heights in underground environments. The lifting device consists of a scissor mechanism powered by the vehicle's hydraulic system. Two hydraulically extendable stabilizer supports are used to stabilize the platform.

Basic technical specifications

External dimensions (L x W x H)

1 740 x 2 000 x 2 500 [mm]

Platform dimensions (L x W x H)

1 000 x 1 600 x 750 [mm]

Vehicle mounting

Fixed mounting (screw structure)

Load capacity

450 [kg]

Maximum height

4 700 [mm]

NDVU-KO02F CABIN FOR TRANSPORTING PEOPLE

Basic description

The module is designed for the safe transport of 8 people in underground mining operations. The cabin is designed with an emphasis on safety, comfort, and resistance to extreme operating conditions (dust, humidity). The sheathing is made of sheet metal parts with thermal and acoustic insulation. Access to the cabin is provided by side doors fitted with transparent safety glass. The entrance thresholds and floor are equipped with a non-slip surface. The cabin is equipped with handrails and handles for a secure grip.

Basic technical specifications

External dimensions (L x W x H)

1 940 x 2 000 x 2 600 [mm]

Passenger capacity

8 persons

Vehicle mounting

Fixed mounting (screw structure)

Type of straps

3-point seat belts
